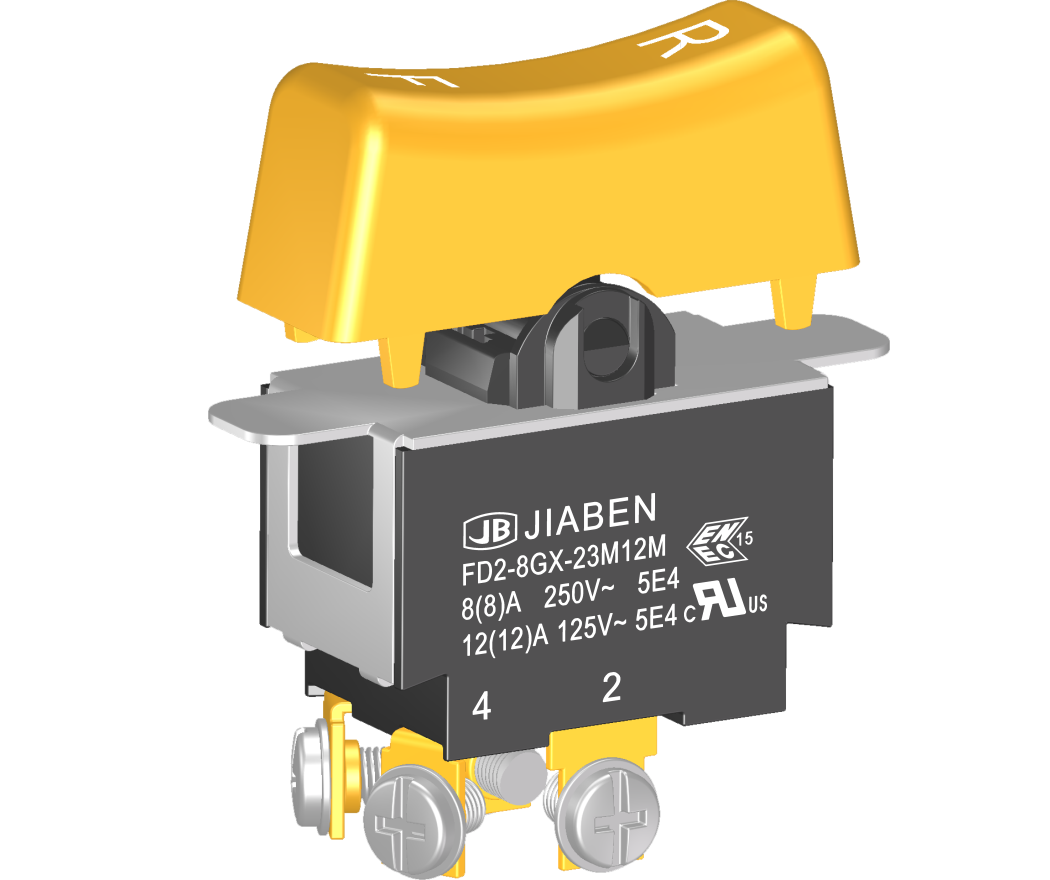

fd2-8gx(防尘)正反转倒扳开关

fd2-8gx series (dustproof) change-over lever switches

产品描述product description

fd2-8gx系列是一款专用型的倒扳开关,也叫摇杆开关或拨动开关,应用于各类手持式电动工具,如:电动冲击扳手、电动搅拌器、电动葫芦等。
fd2-8gx series are special type lever switches, also named toggle switch, commonly for used in portable power-tools such as electric wrenches, electric mixers, electric winches, etc.

产品特征features

◆可选带以下功能 optional with following function:
→双极单掷 dpst (double pole single throw)
→双极双掷 dpdt (double pole double throw)

→双极双掷带中间断开 dpdt with center off

→点动方式 momentary act

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4/1e5
→电气耐久寿命 electrical life endurance≥1e4/5e4
→最大冲击电流 max. inrush current at 250v72a
→最大冲击电流 max. inrush current at 125v108a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 4.8×0.8mm
→螺钉端子 screw terminals m3.5

电气参数和认证 electric rating and certification

订货信息ordering information
