fdu滑动(推拉)开关

fdu series slide (push-pull) switches

产品描述product description

fdu系列是一款专用型的滑动并关,也可推拉并关或推拨并关,应用于汽油动力园林工具,如:汽油动力打草机、汽油动力吹吸机、汽油动力链锯等。
fdu series are speciai typesiideswitches, commonly forusedin power gardening tools, such as power grass trimmer, power blowers, power chain-saws, etc.

产品特征features

可选带以下功能 optional with following function:

→单极单掷 single pole single throw

→单极单掷点动 single pole single throw with momentary act

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4
→电气耐久寿命 electrical life endurance≥1e4
→最大冲击电流 max. inrush current at 250v2a
→最大冲击电流 max. inrush current at 125v4a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced500v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

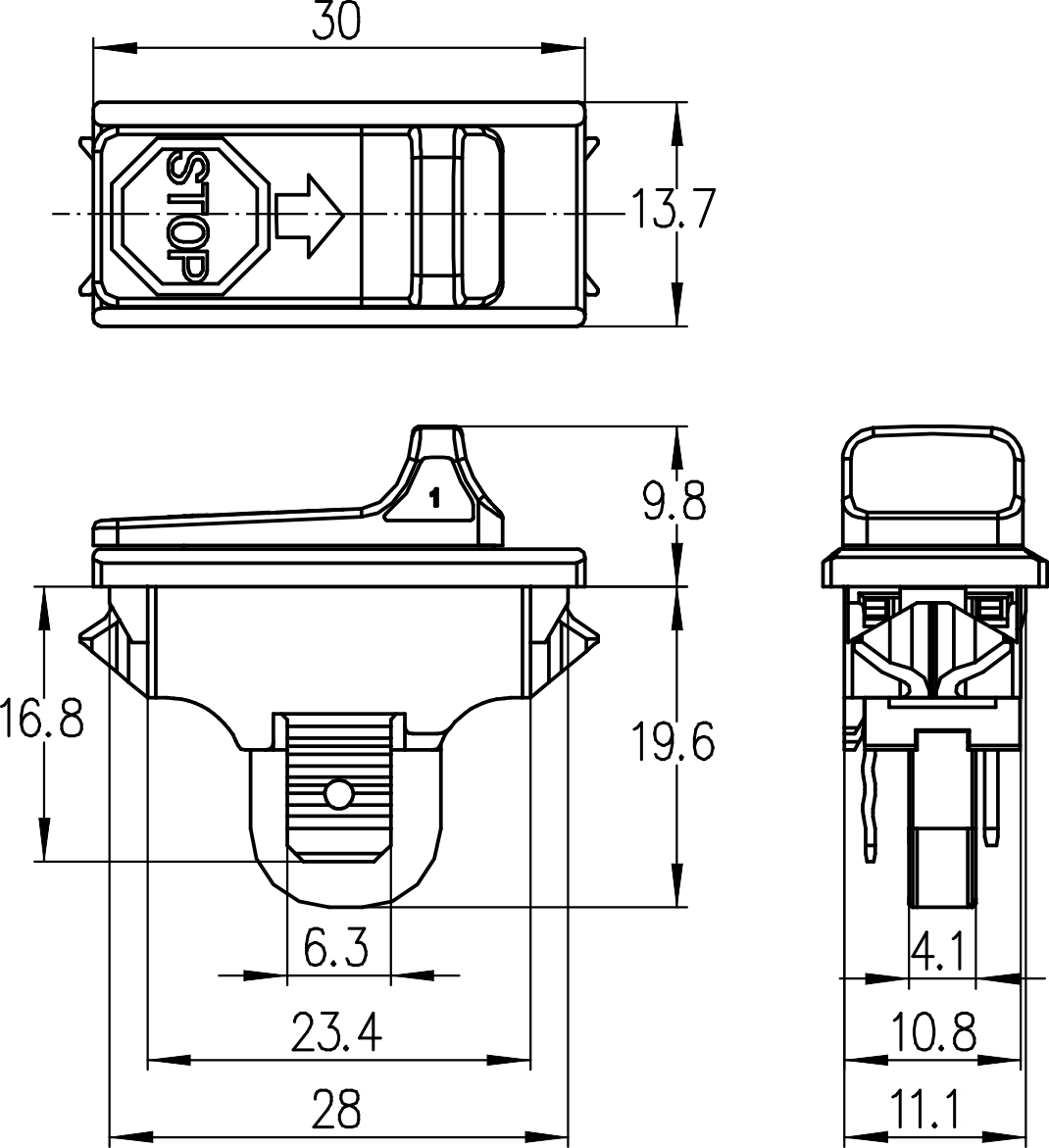

端子类型terminals

输入端/输出端 lnput side/output side:

插片端子 plug terminals 6.3×0.8mm

插片端子 plug terminals 4.8×0.8mm

电气参数和认证 electric rating and certification
