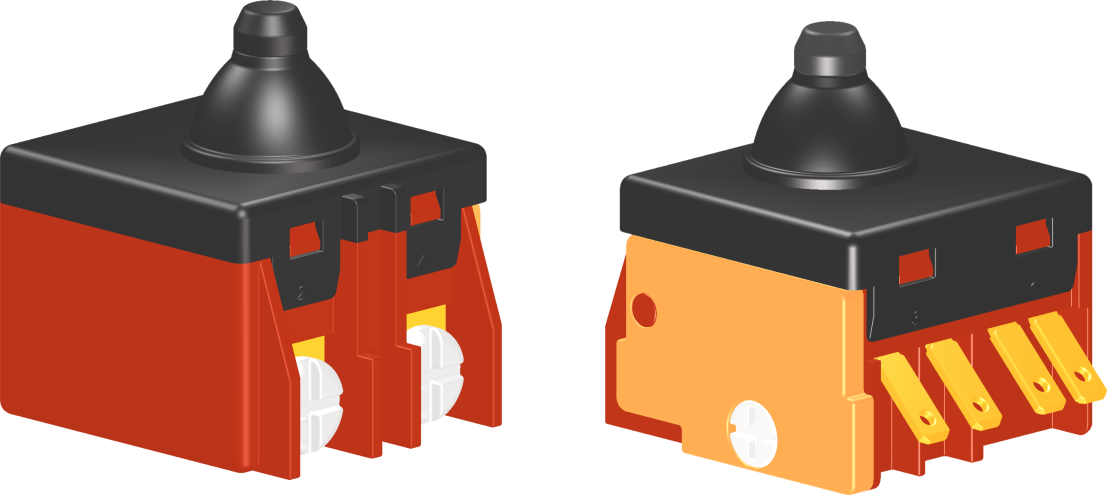

fa2-5e series dustproof push-button switches with restart protection (electronics type)

产品描述product description

fa2-5e series are special type push-button switch, integrated dustproof, keep the same size with existing fa2-5n series, with restart protection when the power supply is interrupted (electronics type), designed specially for small angle grinders according to en60947, fulfill the new requirement for zero voltage protection (or nvr), commonly for used in portable power-tools such as 100mm and 125mm angle grinders, polisher grinders, die grinders, etc.


◆可选带以下功能 optional following function types:
→软启动功能 soft start function
→过流保护功能 over current protection function
→过温保护功能 over temperature protection function
◆可选带以下附件 optional with the accessories as follows:
suppression capacitor (commonly 0.22 or 0.33μf)

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v36a
→最大冲击电流 max. inrush current at 127v60a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature-25°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip50
→适用于ii类防护器具 suitable for appliances of protection class ii


◆输入端 input side:
→螺钉端子 screw terminals m3.5
◆输出端 output side:
→插片端子 plug-in terminals 2.8×0.8mm
★utility model patented with the no. is zl201720856527.3

电气参数和认证 electric rating and certification

订货信息ordering information
