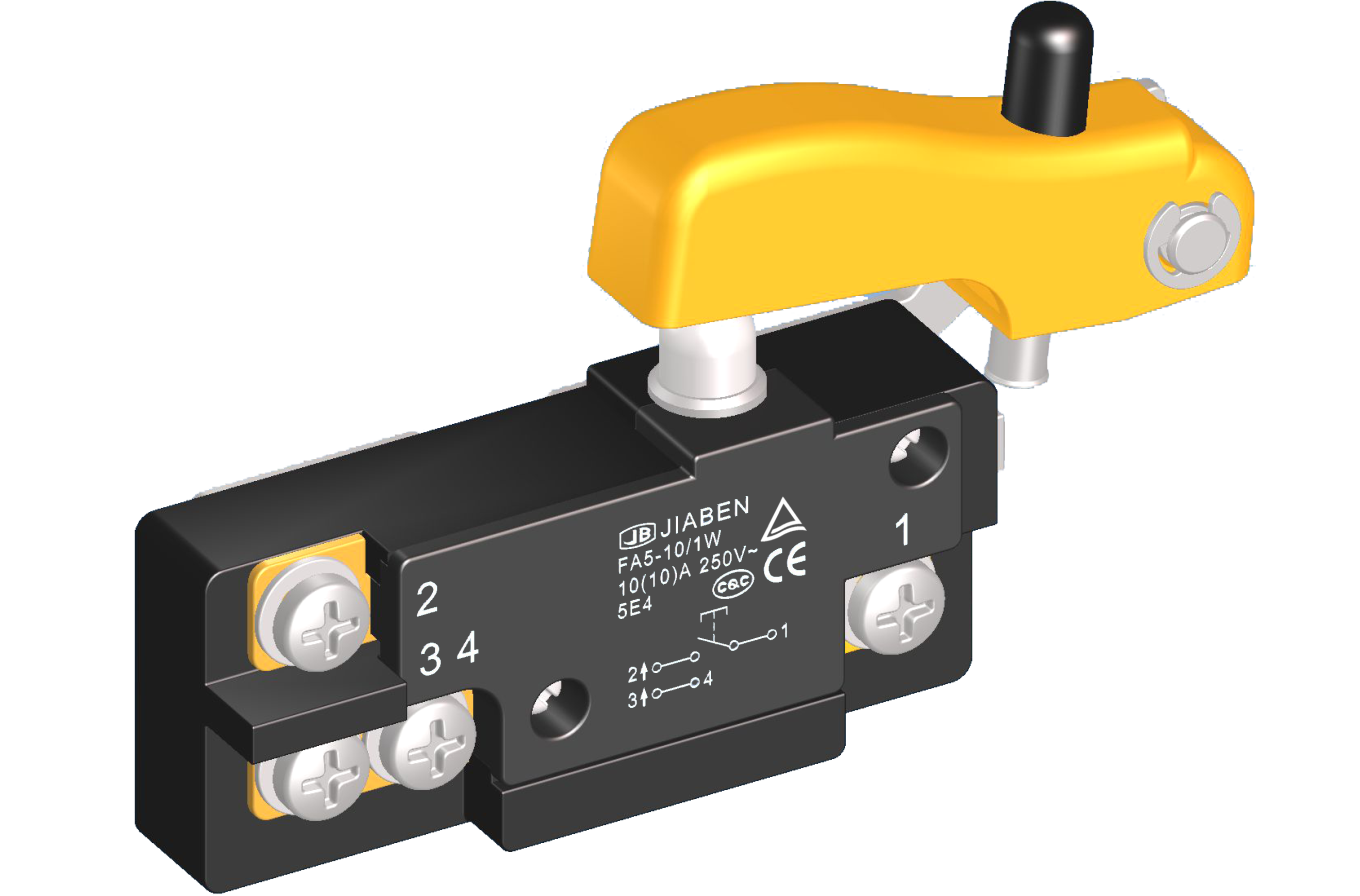

产品描述product description
◆fa5-10a, fa5-10b系列是一款通用性的扳机开关，集成防尘功能，内部为快速动作结构，适合一般功率的电动工具，如：型材切割机、斜切锯(介铝机)、125和150角磨机、电锤、电镐等。
◆fa5-10a, fa5-10b series are one general type trigger switch, integrated dustproof, with snap-action structure, for used in portable or bench top power-tools such as cut-off machines, miter saws, 125mm and 150mm angle grinders, rotary hammers, demolition hammers, etc.
产品特征features
◆有多种支架和扳机可选 optional with different supports and triggers
◆可选带以下锁定类型 optional with following lock types:
→无锁 no lock
→闭合锁定 lock-on
→断开锁定 lock-off
技术数据technical data
→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v60a
→最大冲击电流 max. inrush currentat 125v90a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 die lectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii
端子类型terminals
◆输入端/输出端 input side/output side:
→螺钉端子 screw terminals m4
电气参数和认证 electric rating and certification
