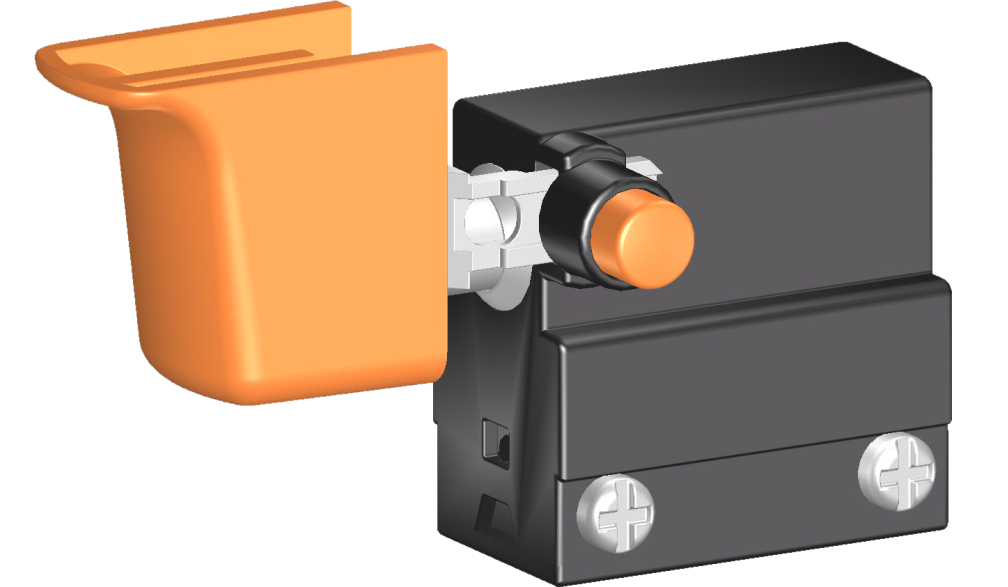

fa2-6d, fa2-6dx, fa2-6dy防尘扳机开关

fa2-6d, fa2-6dx, fa2-6dy series dustproof trigger switches

产品描述product description

fa2-6d, dx, dy系列是一款通用型的扳机开关,可选集成防尘功能,广泛应用于各类电动工具,如:云石机、电圆锯、电锤、电木铣、砂带机、带锯机、砂光机、电刨、搅拌器、电动喷枪等。
fa2-6d, dx, dy series are one general type trigger switch, optional integrated dustproof version, commonly for used in power tools such as marble cutters, circular saws, electric hammers, electric routers, belt sanders, belt saws, electric planers, electric mixers, electric sprayers, etc.


◆可选带以下功能 optional with following function:
→双极常开 dpno
→单极常开 spno
◆可选带以下锁定类型 optional with following lock types:
→无锁定 no lock
→闭合锁定 lock-on
→断开锁定 lock-off

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v48a
→最大冲击电流 max. inrush current at 125v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii


◆输入端 input side:
→接线柱端子 pillar terminals φ=3mm
→push-in terminals for soldered strands, strands with end sleeve
◆输出端 output side:
→push-in terminals for soldered strands, strands with end sleeve or strands with end claws

电气参数和认证 electric rating and certification

订货信息ordering information
