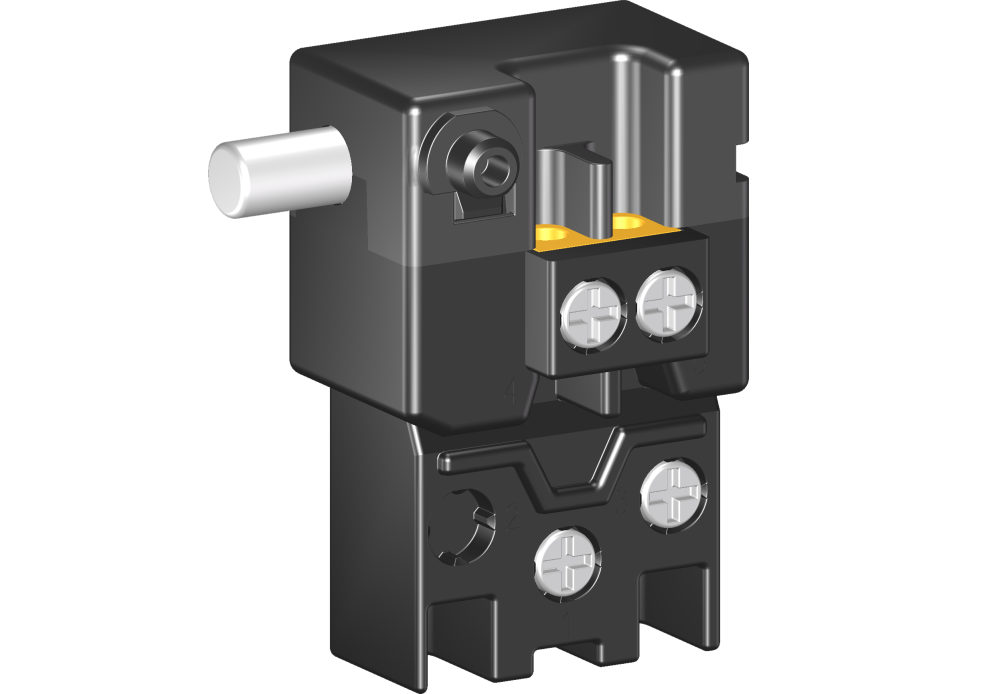

fa2-6bn防尘扳机开关

fa2-6bn series dustproof trigger switches

产品描述product description

fa2-6bn系列是一款通用型的扳机开关, fa2-6b系列的防尘改进款,广泛应用于各类电动工具,如:型材切割机、斜切锯、电圆锯、电锤、电镐等。
fa2-6bn series areone general type trigger switch, which is dustproof improved version of fa2-6b series, commonly for used in power tools such as cut-off machines, miter saws, circular saws, ele ctric hammers, demolition hammers, etc.

产品特征features

◆可选带以下功能 optional with following function:
→单极常开 spno
→单极双掷 spdt
→一极常开,另- -极直通 one pole no, the other directly
→一极双掷,另一极直通 one pole dt, the other directly
◆可选带以下附件 optional with the accessories as follows:
→包软胶扳机 trigger covered with rubber (overmolding)

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v60a
→最大冲击电流 max. inrush current at 125v90a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip50
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→接线柱端子 pillar terminals φ=3.0mm

电气参数和认证 electric rating and certification

订货信息ordering information
