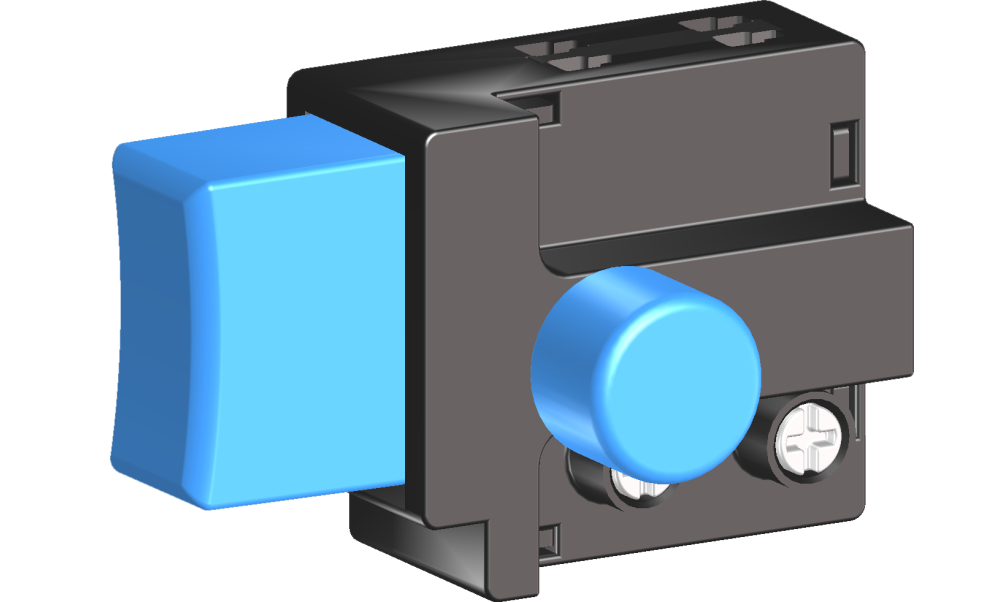

fa1-6d快速动作扳机开关

fa1-6d series snap-action trigger switches

产品描述product description

fa1-6d系列是一款通用型的扳机开关,内部为快速动作结构,应用于对防尘不做要求的手持式电动工具和园林工具,如:搅拌器、电动钉枪、打草机、电链锯、电动割草机、电动扫雪机等。
fa1-6d series are one general type trigger switch, with with snap-action structure, for used in portable power-tools and gardening tools such as electric mixers, electric nailers, grass trimmers, electric chain saws, electric lawnmowers, electric snowthrowers, etc.

产品特征features

◆可选带以下锁定类型 optional with following lock types:
→无锁定 nolock
→闭合锁定 lock-on

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v78a
→最大冲击电流 max. inrush current at 125v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端input side:
→2×接线柱端子pillar terminalsφ=2.8mm
→4×插入式端子可插入沾锡导线、带插片端子导线或铜包头导线
4×push-in terminals for sold ered strands, strands with end sleeves or strands with end claws
◆输出端output side:
→2×接线柱端子pillar terminalsφ=2.8mm
→4×插入式端子可插入沾锡导线、带插片端子导线或铜包头导线
4×push-in terminals for soldered strands, strands with end sleeves or strands with end claws

电气参数和认证 electric rating and certification

订货信息ordering information
