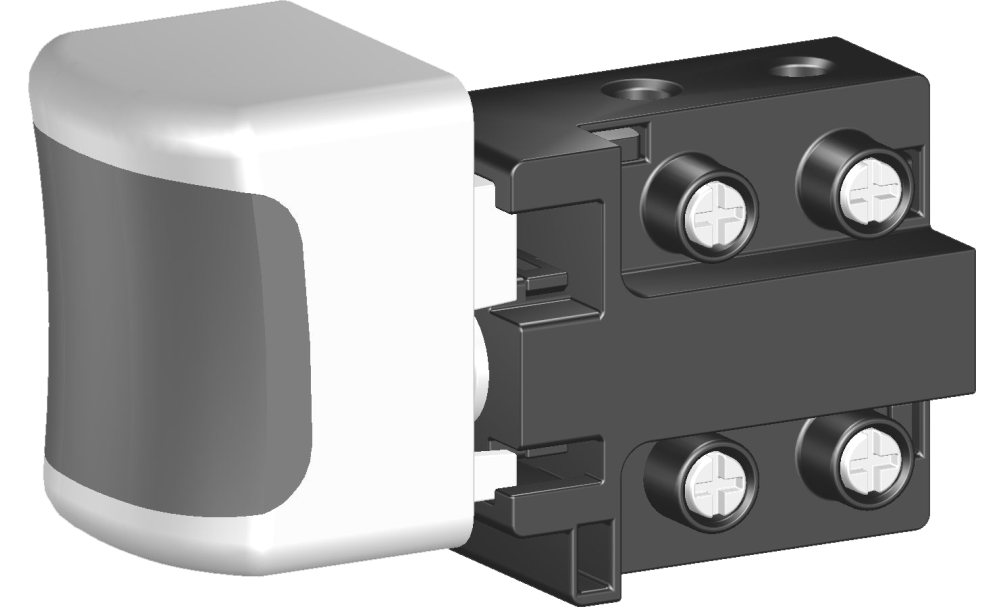

fa1-6b防尘扳机开关

fa1-6b series dustproof trigger switches

产品描述product description

fa1-6b系列是一款通用型的扳机开关,集成防尘功能,广泛应用于各类手持式电动工具,如:电钻、电锤、往复锯、曲线锯、搅拌器、型材切割机、石材切割机、电圆锯、电木铣、砂带机、砂光机、电刨、电动喷枪、电动钉枪,也可应用于电动园林工具,如:打草机、电链锯、电动割草机、电动扫雪机等。
fa1-6b series are general type trigger switch, integrated dustproof, commonly for used in portable power tools such as electric drills, rotary hammers, reciprocating saws, jig saws, electric mixers, cut-off machines, marble cutters, electric routers,  circular saws, belt sanders, orbit sanders, polishers,electric planers, electric sprayers, electric nailers, etc. besides, they are also suitable for power gardening tools, such as grass trimmers, electric chain saws, electric lawnmowers, electric snowthrowers, etc.

产品特征features

◆可选带以下锁定类型 optional with following lock types:
→无锁定 no lock
→闭合锁定 lock-on
→断开锁定 lock-off
→断开锁定带闭合锁定 lock-off with lock-on
◆可选带以下附件 optional with the accessories as follows:
→包软胶扳机 trigger covered with rubber (overmolding)

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max.inrush current at 250v60a
→最大冲击电流 max.inrush currentat 125v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端 input side:
→2×接线柱端子 pillar terminals φ=2.6mm or 2.8mm
◆输出端 output side:
→2×接线柱端子 pillar terminals φ=2.6mm or 2.8mm
→4×插入式端子可插入沾锡导线、带插片端子导线或铜包头导线
4×push-in terminals for soldered strands, strands with end sleeves or strands with end claws
★本产品荣获实用新型专利,专利号:zl201920465983.4
★utility model patented with the no. is zl201920465983.4

电气参数和认证 electric rating and certification

订货信息ordering information
