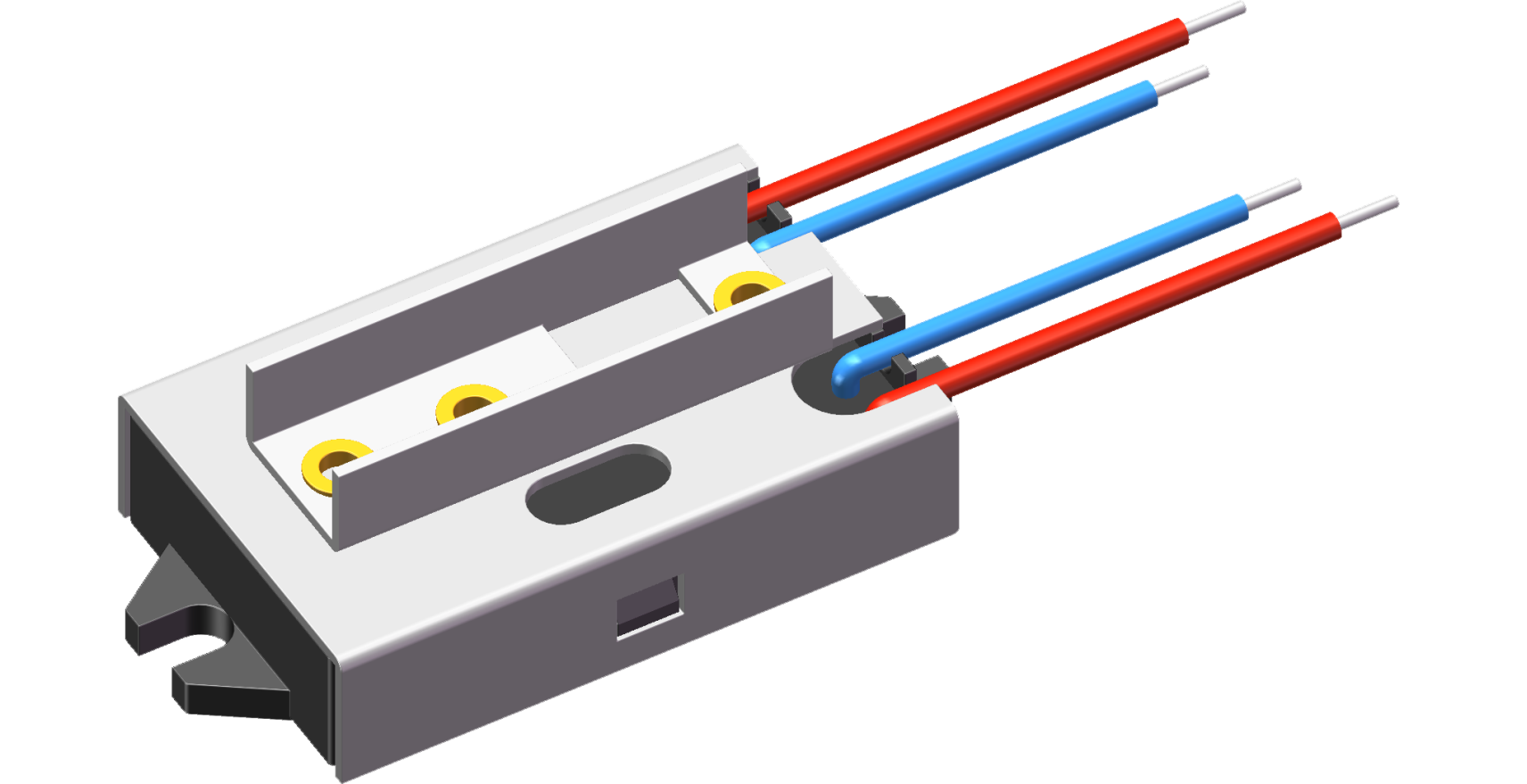

mk06交流软启动线路板组件

mk06 series ac pcb assembly with softstart

产品描述product description

mk06系列是一款专用型线路板组件,具有软启动等功能,广泛应用于各类手持式电动工具,如:150和180角向磨光机、拋光机、型材切割机、斜切锯、水钻等。
mk06 series are one special type pcb assembly, with soft start function, etc. commonly for used in portable power-tools such as 150mm and 180mm angle grinders, polisher grinders, cut-off ma chines, miter saws or water drills, etc.

产品特征features

◆可选带以下功能 optional following function types:
→断电重启保护功能 restart protection(x)
→软启动功能 soft start function(s)
→过流保护功能 over current protection function(cp)
→过温保护功能 over temperature protection function(tp)

技术数据technical data

→电气耐久寿命 electrical life endurance≥5e4
→最大电流 max. current at 250v15a
→最大电流 max. current at 127v24a
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→导线端子 wire lead terminals

电气参数和认证 electric rating and certification

订货信息ordering information
