jb03防尘防水电磁开关

jb03 series dustproof and waterproof electromagnetism switch

产品描述product description

jb03系列是一款标准型的电磁开关,安装防护罩后集成防尘防水功能,适合各类台式电动工具和园林工具,如:台式推拉锯、台式圆锯、台式刨床、台式铣床、台式车床、台式线锯、台式钻床、台式砂轮机和家用碎枝机等。
jb03 series are one standard electromagnetism switches, integrated dustproof and waterproof when employ protection cap, for use in bench top power-tools and gardening tools such as: bench push-pull saws, bench circular saws, bench planers, bench routers, bench lathes, bench scroll saws, bench drill presses, bench grinders, domestic shredders, etc.

产品特征features

◆可选带以下附件 optional with the accessories as follows:
→儿童安全锁 lock for children's safety
→线圈外接端子 terminal of winding outside

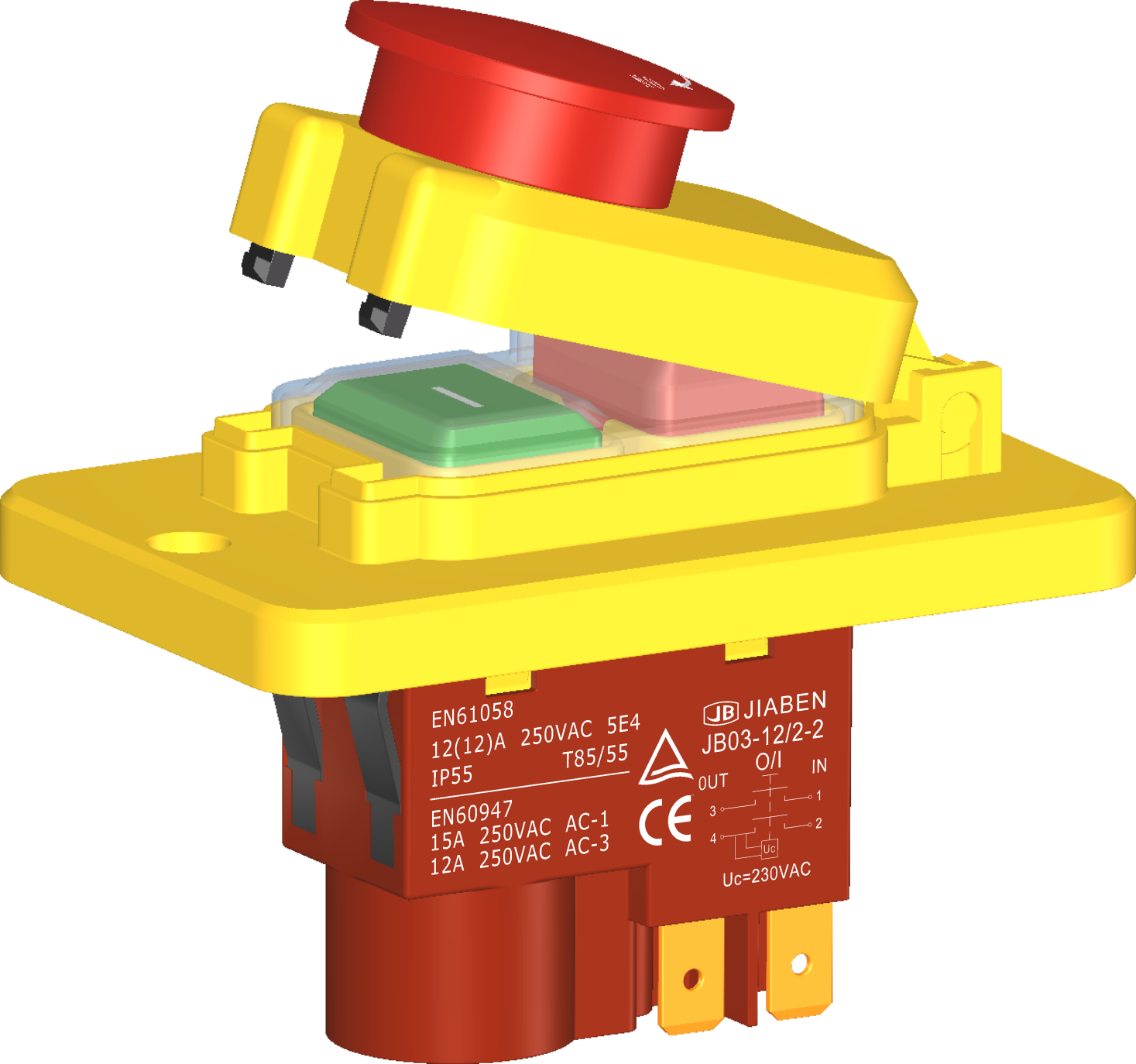

→急停盖 emergency stop cover

技术数据technical data

→机械耐久寿命 mechanical life endurance1e5
→电气耐久寿命 electrical life endurance5e4
→最大冲击电流 max. inrush current at 250v84a
→最大冲击电流 max. inrush current at 125v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→操动件温度 actuator temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip55 max.
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 6.3×0.8mm
线圈外接插片端子 terminal of winding:
→插片端子 plug-in terminals 2.8×0.8mm

电气参数和认证 electric rating and certification

订货信息ordering information
