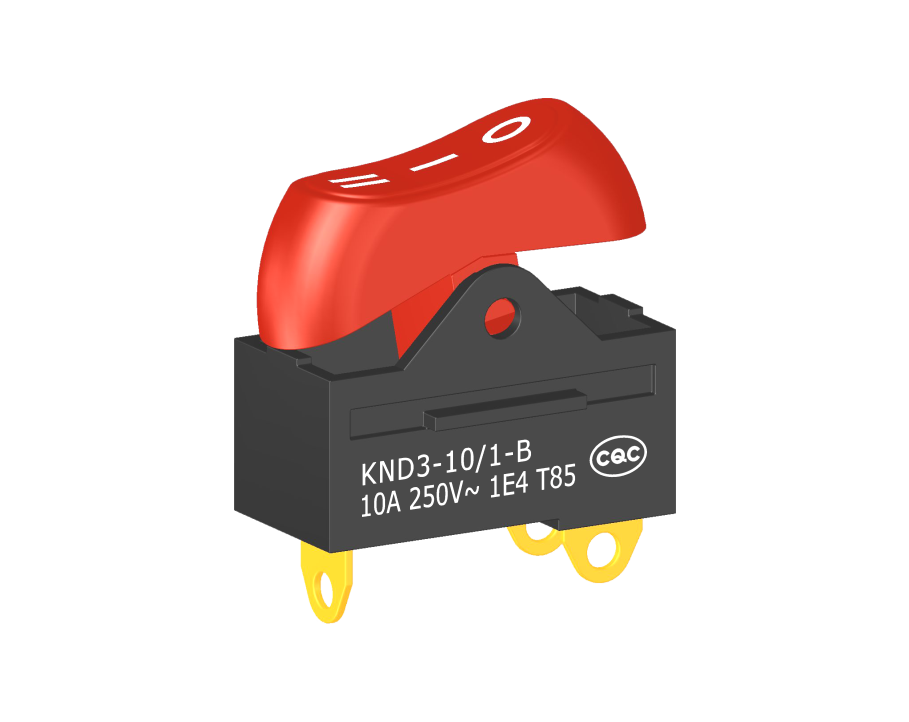

knd3跷板开关

knd3 series rocker switches

产品描述product description

knd3系列是一款通用型的跷板开关,也通称船型开关、波形开关等,一般应用于各类电吹风、热风枪等。
knd3 series are one general type rocker switches, commonly for used in hair driers, heat guns, etc.

产品特征features

◆可选不同的主体 optional with different body types
◆可选多种不同的按钮 optional with different button types

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v30a
→最大冲击电流 max. inrush current at 250v36a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→操动件温度 actuator temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 solder terminals

电气参数和认证 electric rating and certification
